Vertiv APS
Technology:
Power rating:
Voltage:
Configuration:
Warranty:
Documentation / Downloads

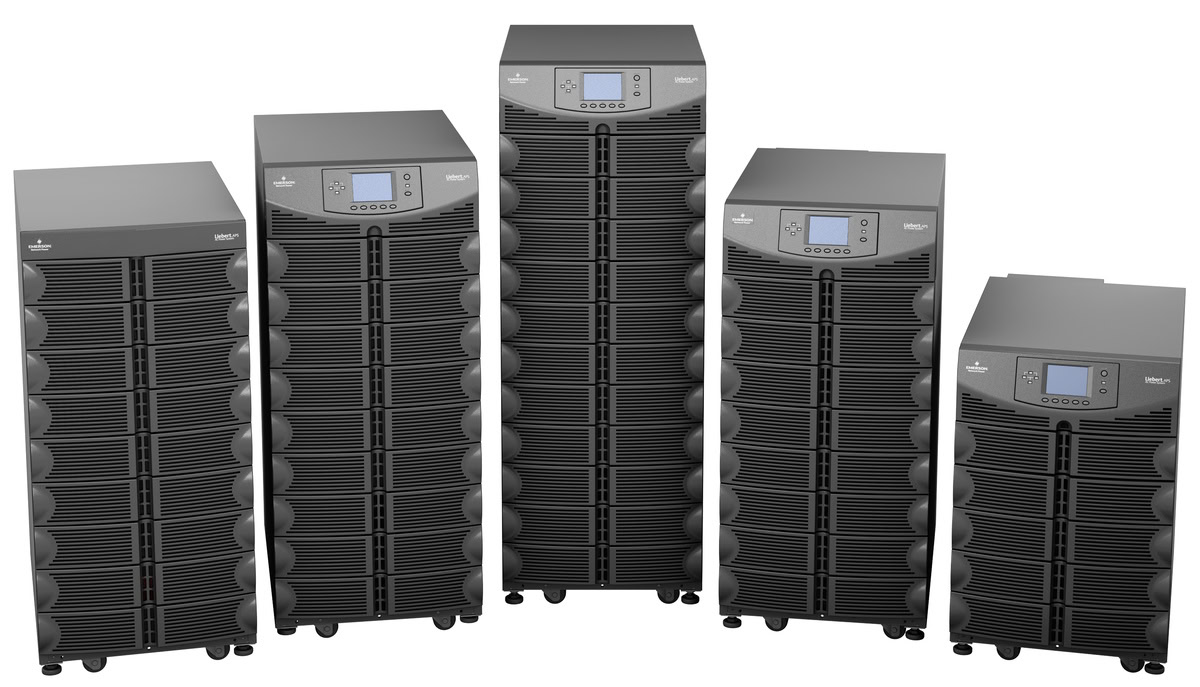

The Vertiv APS UPS (formerly Liebert APS) provides mission-critical availability ensuring your critical IT functions – and your business – will be available and running as expected through power disruptions, fluctuations and outages.
The Vertiv APS UPS adapts efficiently and effectively as the needs of your users and core business power requirements change. The UPS offers capacity on demand with FlexPower core modules – allowing you to change capacity in 5kVA/4.5kW increments up to 20kVA
- True on-line double conversion UPS technology
- Transformer-free and transformer-based models
- User install-able, hot-swappable capacity and battery modules
- Internal redundancy capability (N+2/20kVA)
- Industry-leading efficiency: 92% for transformer-free systems and up to 89.9% for transformer based systems
- Scale-ability that allows you to cost-effectively add power capacity or battery modules as needed
- Modular batteries, controls and power components to help reduce maintenance costs with user replacement
- Two year hassle-free factory warranty program for repair or replacement
- Module-level redundancy eliminates the expense of purchasing and planning for additional cabinets
- Reduced installation time and cost because units are shipped pre-configured and factory tested, no need for on-site assembly
- Everything you need for efficiency and availability in one box: power modules, batteries, maintenance bypass and distribution in a single, small-footprint cabinet
- Integral battery monitoring with temperature compensated charging to prolong battery life and help reduce replacement costs
- Internal redundancy capability (N+2/20kVA) enhances reliability and provides multiple layers of power protection
- No single point of failure – Full redundant design allows the critical load to run on conditioned power if there is a failure of any component in the system
- Configurable design allows you to customize the UPS for your desired level of capacity and redundancy
- Fault-tolerant design, enables the power, battery and control modules to take themselves offline if there is a problem, without sacrificing overall system integrity
- Superior overload capabilities, able to provide conditioned power to temporary overloads without transfers to/from bypass power
- Internal wrap-around maintenance bypass and frame-level bypass with independent controls in separate assembly provide higher reliability and availability
- Capacity on demand with FlexPower core modules that allow you to change capacity as needed in 5kVA / 4.5 kW increments – without powering down
- More real kW – 0.9 power factor provides more real power to support the I.T load than other solutions in this size range
- Isolated and non-isolated models to provide the right solution for your power protection needs
- Integrated distribution PODs allow selection of a variety of distribution options to meet application requirements
- ‘Trellis’ platform connectivity, so the UPS can easily be integrated with this robust, real-time data center optimization solution
- Three ‘Intellislot’ ports allow integration and communication with a variety of infrastructure management solutions, leading to better power optimization and visibility
- Optional matching external battery cabinets provide longer battery run times to protect against sustained power issues
- Installation Flexibility – use on raised floors, traditional flooring, or in rack enclosures
- Large input voltage window, which minimizes transfer to battery and increases battery life; low line transfer can range down to 110v
- Wide range of use, with the ability to be installed on raised floors, traditional flooring, or in rack enclosures
For pricing and further information, please phone Power On Australia on 1300 66 24 35 or complete the enquiry form below.
- True on-line double conversion UPS technology
- Transformer-free and transformer-based models
- User install-able, hot-swappable capacity and battery modules
- Internal redundancy capability (N+2/20kVA)
- Industry-leading efficiency: 92% for transformer-free systems and up to 89.9% for transformer based systems
- Scale-ability that allows you to cost-effectively add power capacity or battery modules as needed
- Modular batteries, controls and power components to help reduce maintenance costs with user replacement
- Two year hassle-free factory warranty program for repair or replacement
- Module-level redundancy eliminates the expense of purchasing and planning for additional cabinets
- Reduced installation time and cost because units are shipped pre-configured and factory tested, no need for on-site assembly
- Everything you need for efficiency and availability in one box: power modules, batteries, maintenance bypass and distribution in a single, small-footprint cabinet
- Integral battery monitoring with temperature compensated charging to prolong battery life and help reduce replacement costs
- Internal redundancy capability (N+2/20kVA) enhances reliability and provides multiple layers of power protection
- No single point of failure – Full redundant design allows the critical load to run on conditioned power if there is a failure of any component in the system
- Configurable design allows you to customize the UPS for your desired level of capacity and redundancy
- Fault-tolerant design, enables the power, battery and control modules to take themselves offline if there is a problem, without sacrificing overall system integrity
- Superior overload capabilities, able to provide conditioned power to temporary overloads without transfers to/from bypass power
- Internal wrap-around maintenance bypass and frame-level bypass with independent controls in separate assembly provide higher reliability and availability
- Capacity on demand with FlexPower core modules that allow you to change capacity as needed in 5kVA / 4.5 kW increments – without powering down
- More real kW – 0.9 power factor provides more real power to support the I.T load than other solutions in this size range
- Isolated and non-isolated models to provide the right solution for your power protection needs
- Integrated distribution PODs allow selection of a variety of distribution options to meet application requirements
- ‘Trellis’ platform connectivity, so the UPS can easily be integrated with this robust, real-time data center optimization solution
- Three ‘Intellislot’ ports allow integration and communication with a variety of infrastructure management solutions, leading to better power optimization and visibility
- Optional matching external battery cabinets provide longer battery run times to protect against sustained power issues
- Installation Flexibility – use on raised floors, traditional flooring, or in rack enclosures
- Large input voltage window, which minimizes transfer to battery and increases battery life; low line transfer can range down to 110v
- Wide range of use, with the ability to be installed on raised floors, traditional flooring, or in rack enclosures
FAQs
Are your UPS' reliable?
UPS’ are very reliable when used in accordance with the manufacturers instructions. Like many electronic devices, they can be easily mistreated.
How do UPS' work?
UPS’ work by preventing interruption of Power to the critical load. This is usually happens by providing a secondary source of energy – like a battery – to run your critical load. There are a handful of different methods for UPS operation, that deliver somewhat different results.
How do UPS' work in a data centre?
Data Centres use a large Centralised UPS array, backed up by generators as well as the grid, to keep power available to the data centre uses for many hours in circumstances when grid power has failed.
What UPS do I need?
The UPS you will need will absolutely be defined by what your load is. A PC will need a different size UPS to a refrigerator, or a variable speed drive. That’s because the loads are very different in nature.
Where is UPS used?
A UPS is expected to be used in any clean, dust Free, temperature and humidity controlled location. Using a UPS outdoors, or in a vehicle or on a ship or an oil rig requires specialist UPS systems.
Which UPS is best for home?
If you are using your UPS in a major city home, and for typical home IT equipment, like PC’s, TV’s and modems, a ‘line interactive’ UPS is all that is generally required. In areas where your power supply is weak or poor quality, or your supported equipment is more critical in nature – like a CPAP machine or humidicrib, it is best to get specialist advice.
Which UPS battery is best?
UPS batteries are divided generally into 2 types. High rate batteries and non high rate batteries. High rate batteries can support a large burst of energy for short periods of time – like 30 minutes, but have a comparatively short service life. Non high rate batteries are designed for long slow discharges, and can often support equipment for many hours, and will last near double the lifespan of high rate batteries. Battery type and sizing is complex, best to seek professional advice here.
Which UPS is best for Computer or Gaming PC?
The best type of UPS is best for every type of application because of the way it’s expected to work. These are double conversion UPS’s, sometimes called true on line UPS’s. They work very differently to more economical UPS’s, are more complex, more reliable, more powerful and significantly more expensive that the low cost UPS’s. If ‘best’ means highest reliability and best quality power output with fewest power breaks to you, get Double Conversion.
Why is UPS used?
A UPS is used solely to prevent or limit interruption of mains power to critical loads. Other add on functions like surge protection, alarms and communications and remote control of servers is not a core UPS function.
If you have a question we haven’t featured in our FAQs, please use the form above and we’ll get back to you as soon as possible. Thank you.
