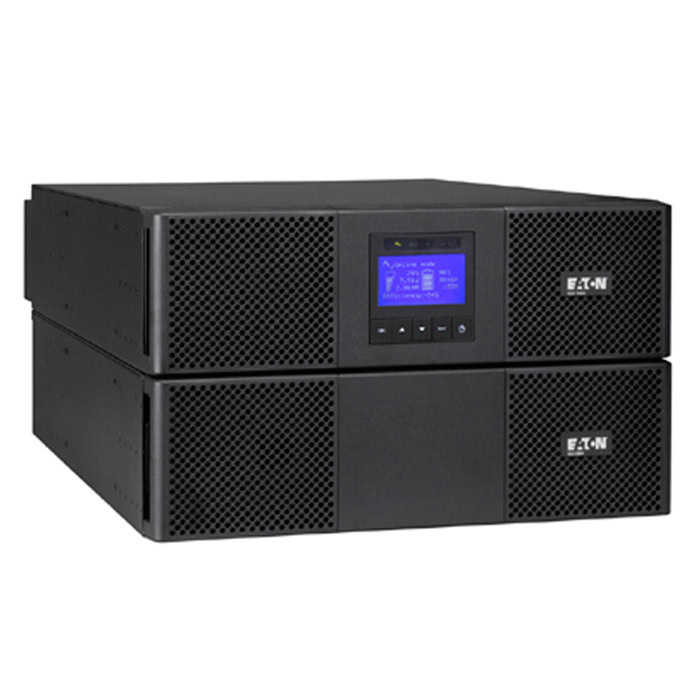

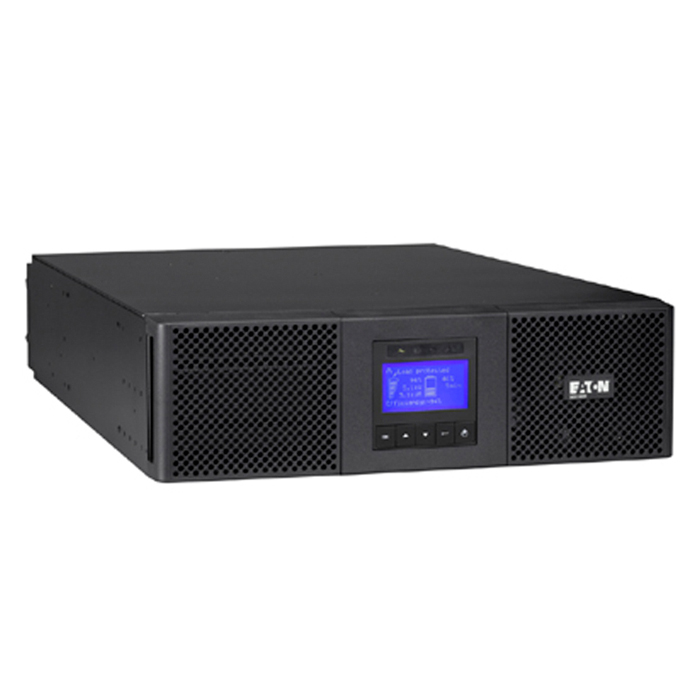

Eaton 9SX Tower/Rackmount
Technology:
Power rating:
Phase:
Configuration:
Warranty:
Documentation / Downloads
The Eaton 9SX 15K/20K UPS is designed to deliver reliable power for critical IT infrastructure, industrial, manufacturing, and medical devices. With advanced technology that enhances double conversion efficiency and reduces footprint, this UPS saves both costs and rack space, making it an ideal choice for various applications, including those outside of traditional communications rooms.
Eaton UPS systems are scalable and configurable to meet diverse power requirements, offering a future-proof investment. As UPS specialists, we provide comprehensive design, installation, and maintenance services to optimise the performance of your new equipment.
- High Efficiency: Offers double conversion efficiency of up to 96%, reducing energy usage and CO2 emissions, thus helping IT managers save on power and cooling costs.
- High Power Density: The 15KVA/20KVA power model requires only 3U rack space, with a short depth chassis suitable for deployment in cabinets as shallow as 800mm deep.
- High Power Factor: With unity power factor VA=Watt, it can power more servers than UPSs with equivalent VA ratings but lower power factors.
- Versatile Installation: Can be deployed as a rack mount or freestanding (tower) unit, providing flexibility in installation options.
- Versatile Wiring: Supports a wide array of electrical environments, allowing input and output wiring to be connected as 3 phase or 1 phase, with various modes catered for by a single SKU.
- Parallel Operation: Enables redundancy and expanded power rating for enhanced reliability.
- Large Coloured Touch Screen LCD: Features a built-in gravity sensor that automatically rotates the screen based on UPS deployment orientation.
- ESS Mode: Achieves up to 98.8% efficiency in ESS mode, with the system switching to online mode on demand in less than 2ms response time.
- Endures Harsh Environments: Operates in temperatures up to 50°C, with a maximum operation altitude of up to 4000m and line mode overload capacity up to 10min at 125% rated load.
- Battery Management: Utilises Eaton’s exclusive ABM® technology to increase battery service life by 50%, with advanced monitoring for timely battery replacement.

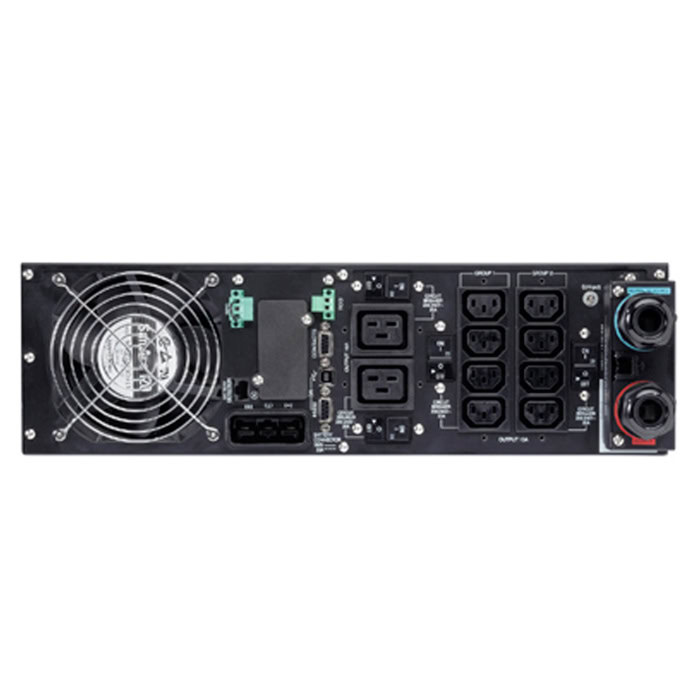

- Professional HMI: Features multi-connectivity ports including RS232, USB, dry in/out, EPO, and intelligent slot for seamless operation and configuration.
- Intelligent Power Management Software: Compatible with all major operating systems, including virtualisation software such as VMware and Hyper-V, ensuring efficient power management across the network.
For pricing and further information, please phone Power On Australia on 1300 66 24 35 or complete the enquiry form below.
- High Efficiency: Offers double conversion efficiency of up to 96%, reducing energy usage and CO2 emissions, thus helping IT managers save on power and cooling costs.
- High Power Density: The 15KVA/20KVA power model requires only 3U rack space, with a short depth chassis suitable for deployment in cabinets as shallow as 800mm deep.
- High Power Factor: With unity power factor VA=Watt, it can power more servers than UPSs with equivalent VA ratings but lower power factors.
- Versatile Installation: Can be deployed as a rack mount or freestanding (tower) unit, providing flexibility in installation options.
- Versatile Wiring: Supports a wide array of electrical environments, allowing input and output wiring to be connected as 3 phase or 1 phase, with various modes catered for by a single SKU.
- Parallel Operation: Enables redundancy and expanded power rating for enhanced reliability.
- Large Coloured Touch Screen LCD: Features a built-in gravity sensor that automatically rotates the screen based on UPS deployment orientation.
- ESS Mode: Achieves up to 98.8% efficiency in ESS mode, with the system switching to online mode on demand in less than 2ms response time.
- Endures Harsh Environments: Operates in temperatures up to 50°C, with a maximum operation altitude of up to 4000m and line mode overload capacity up to 10min at 125% rated load.
- Battery Management: Utilises Eaton’s exclusive ABM® technology to increase battery service life by 50%, with advanced monitoring for timely battery replacement.
- Professional HMI: Features multi-connectivity ports including RS232, USB, dry in/out, EPO, and intelligent slot for seamless operation and configuration.
- Intelligent Power Management Software: Compatible with all major operating systems, including virtualisation software such as VMware and Hyper-V, ensuring efficient power management across the network.
FAQs
Are your UPS' reliable?
UPS’ are very reliable when used in accordance with the manufacturers instructions. Like many electronic devices, they can be easily mistreated.
How do UPS' work?
UPS’ work by preventing interruption of Power to the critical load. This is usually happens by providing a secondary source of energy – like a battery – to run your critical load. There are a handful of different methods for UPS operation, that deliver somewhat different results.
How do UPS' work in a data centre?
Data Centres use a large Centralised UPS array, backed up by generators as well as the grid, to keep power available to the data centre uses for many hours in circumstances when grid power has failed.
What UPS do I need?
The UPS you will need will absolutely be defined by what your load is. A PC will need a different size UPS to a refrigerator, or a variable speed drive. That’s because the loads are very different in nature.
Where is UPS used?
A UPS is expected to be used in any clean, dust Free, temperature and humidity controlled location. Using a UPS outdoors, or in a vehicle or on a ship or an oil rig requires specialist UPS systems.
Which UPS is best for home?
If you are using your UPS in a major city home, and for typical home IT equipment, like PC’s, TV’s and modems, a ‘line interactive’ UPS is all that is generally required. In areas where your power supply is weak or poor quality, or your supported equipment is more critical in nature – like a CPAP machine or humidicrib, it is best to get specialist advice.
Which UPS battery is best?
UPS batteries are divided generally into 2 types. High rate batteries and non high rate batteries. High rate batteries can support a large burst of energy for short periods of time – like 30 minutes, but have a comparatively short service life. Non high rate batteries are designed for long slow discharges, and can often support equipment for many hours, and will last near double the lifespan of high rate batteries. Battery type and sizing is complex, best to seek professional advice here.
Which UPS is best for Computer or Gaming PC?
The best type of UPS is best for every type of application because of the way it’s expected to work. These are double conversion UPS’s, sometimes called true on line UPS’s. They work very differently to more economical UPS’s, are more complex, more reliable, more powerful and significantly more expensive that the low cost UPS’s. If ‘best’ means highest reliability and best quality power output with fewest power breaks to you, get Double Conversion.
Why is UPS used?
A UPS is used solely to prevent or limit interruption of mains power to critical loads. Other add on functions like surge protection, alarms and communications and remote control of servers is not a core UPS function.
If you have a question we haven’t featured in our FAQs, please use the form above and we’ll get back to you as soon as possible. Thank you.
